Stacker crane for pallets loads storage and handling in automated warehouse

Optimize your supply chain efficiency with our state-of-the-art stacker crane for pallets loads storage and handling in automated warehouse environments. Engineered for precision, speed, and maximum vertical space utilization, this robust automated storage and retrieval system (AS/RS) seamlessly integrates into high-density racking structures to revolutionize your intralogistics operations. Capable of handling diverse payload capacities under extreme conditions, including deep-freeze storage, our equipment guarantees continuous, error-free throughput. Beyond delivering cutting-edge machinery, we provide comprehensive end-to-end services tailored to your facility's unique workflow. From custom engineering design and seamless software integration to professional installation and 24/7 preventive maintenance services, our dedicated experts ensure your automated warehouse operates at peak performance, significantly reducing operational costs while boosting inventory accuracy and workplace safety.

Stacker Crane ASRS



Unit load AS/RS generally falls into two categories: crane-based AS/RS systems and shuttle-based AS/RS systems.



Similar to pallet racking, there are different configurations like total number of SKU (stock keeping unit), ABC classifications, inbound & outbound throughput, proposed area size and other factors etc need to be considered when implementing a unit load AS/RS system. The system solutions can range from:

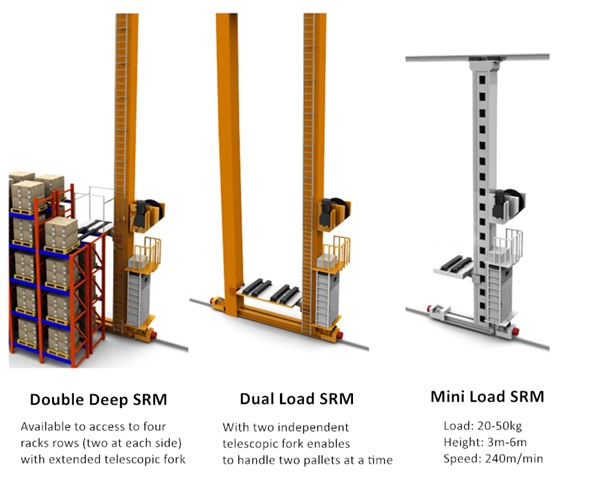

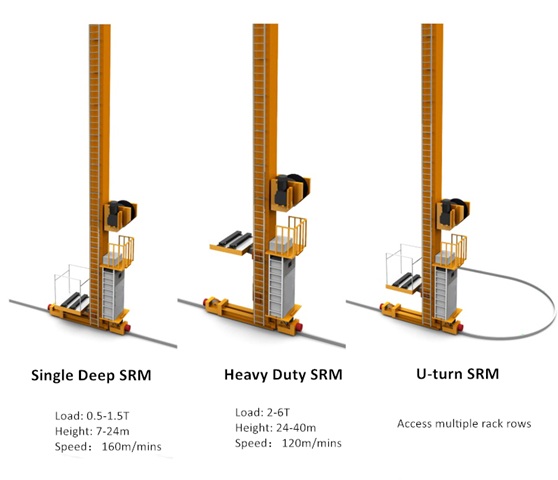

Single deep (1 pallet per lane)--Stacker Crane Based AS/RS

Double deep (2 pallets per lane)--Stacker Crane Based AS/RS

Multi-deep or deep lane (3+ pallets deep)--Shuttle Based ASRS

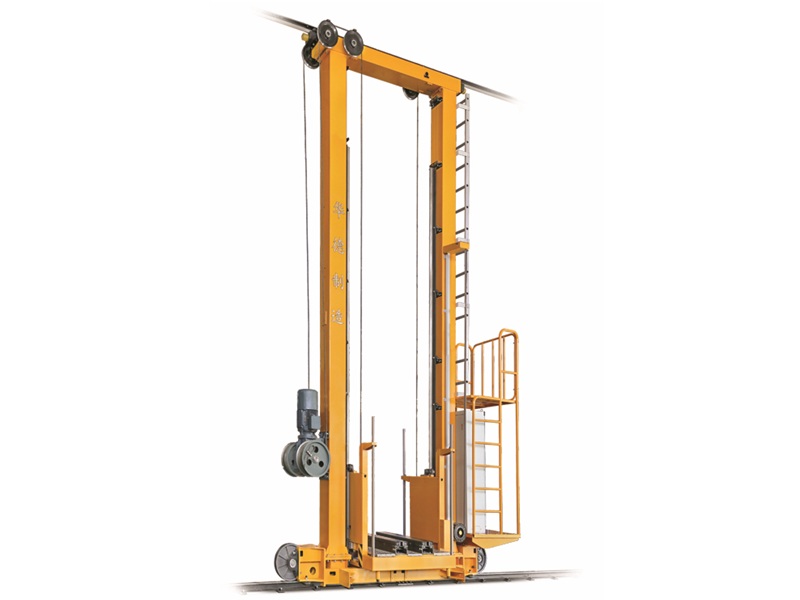

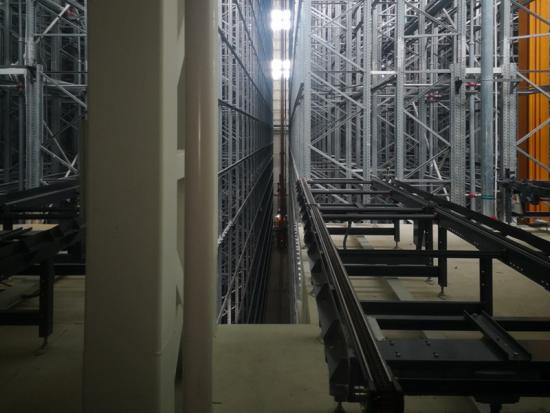

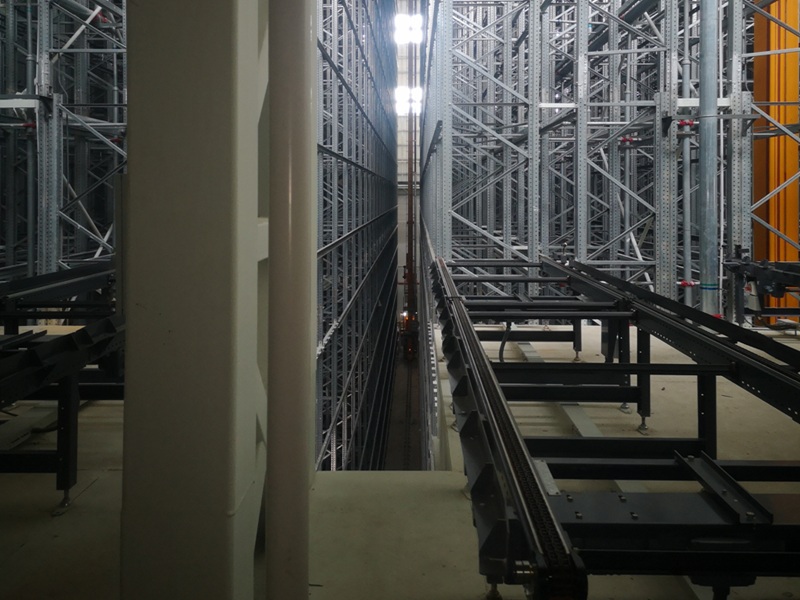

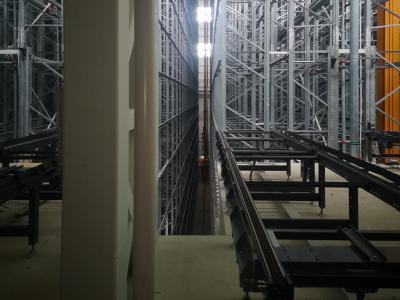

Stacker crane based unit load ASRS, it features one or more narrow aisles of storage rack structures in existing building or a clad rack warehouse. The structure can reach up to the height of 40 meters. Our storage and retrieval machine (SRM) travels between the racking both in X-axis and Y-axis, instructed by WMS which provides a rapid access to allocated pallets and other bulky loads in a secured, high-density and energy efficient storage system. Usually, the system contains one SRM per aisle. But in case it is a slower system, one SRM can be allocated to two or multiple aisles.



If you’re looking for an AS/RS system for case, tray, cardboard box or tote storage and retrieval, please visit our mini load system page.



For companies that handle both pallets and cartons, a combination of a unit-load AS/RS system and a mini-load AS/RS system is a viable option.

Add-on:

RGV

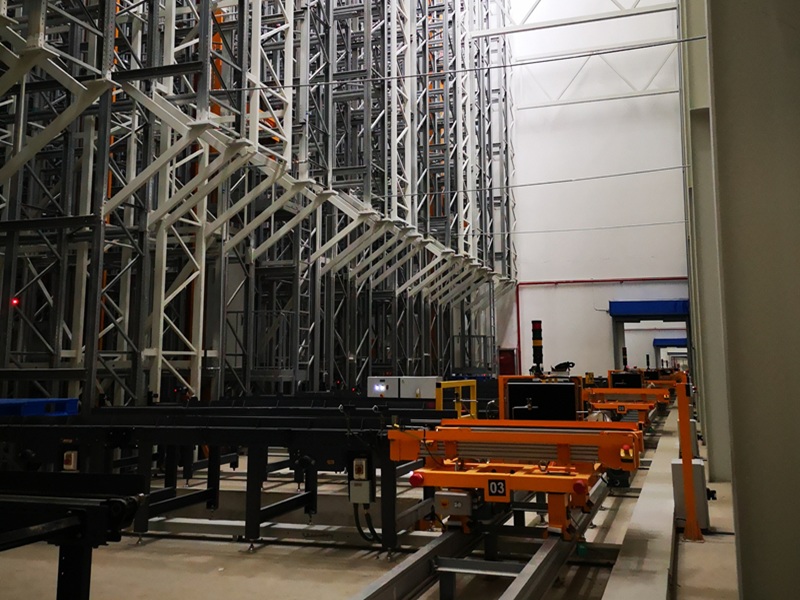

Rail-guided vehicle system STV connects AS/RS aisles to in/out conveyors.

End-of-aisle Conveyors



Conveyors automatically transport pallets to and from load/unload stations. Can also transfer pallets to/from RGVs.
