Home Automated Warehouse 4 Way Pallet Shuttle

AS/RS Four Way Shuttle Automated Storage And Retrieval Systems

Upgrade your warehouse efficiency with our AS/RS Four Way Shuttle Automated Storage And Retrieval Systems. This high-density Four Way Shuttle ASRS solution maximizes pallet storage while delivering intelligent inventory control, flexible expansion, and high throughput. It is ideally suited for modern manufacturing, logistics, cold storage, and 3PL facilities seeking streamlined automated operations.

Inquire Now

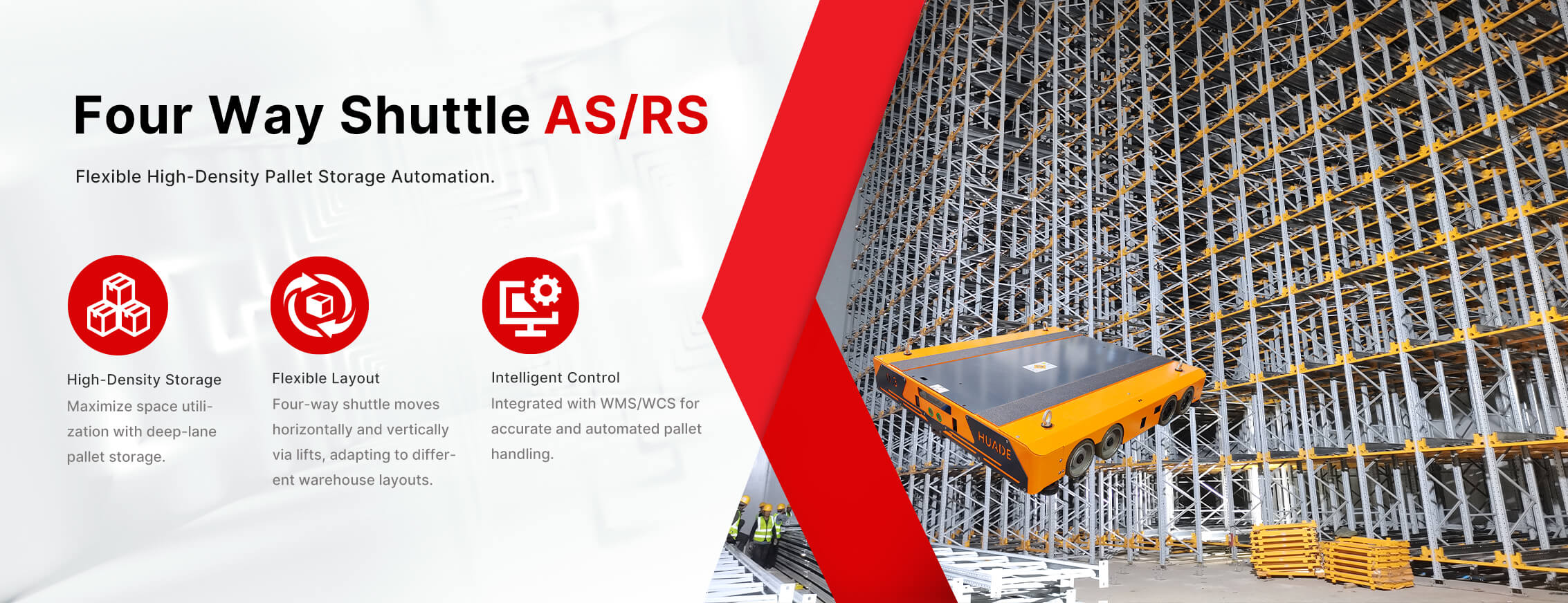

Four Way Shuttle AS/RS

four way shuttle ASRS

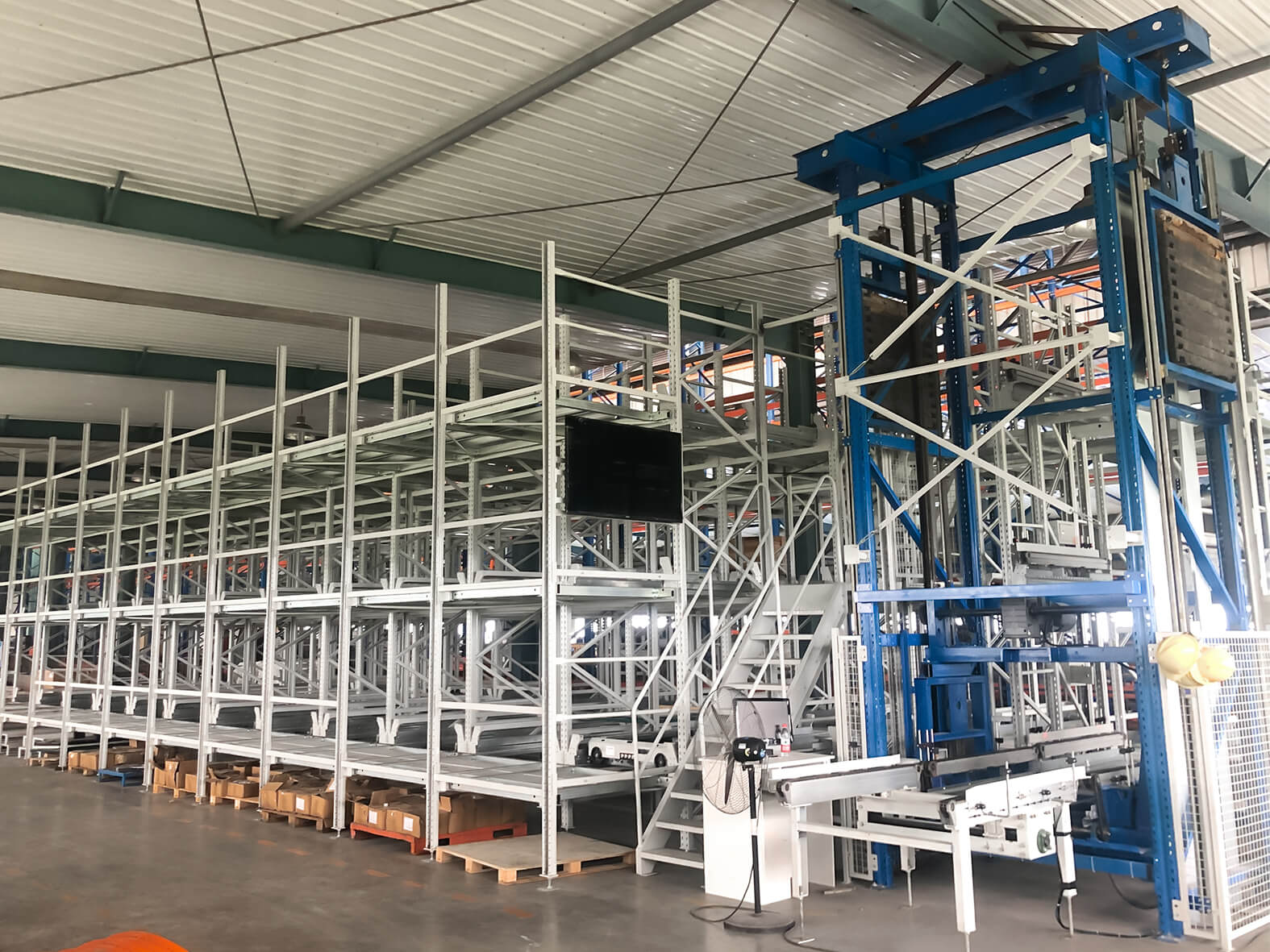

The Four Way Shuttle AS/RS is a high-density automated storage and retrieval system designed for palletized goods.It integrates Four Way Pallet Shuttles, vertical lifts, racking systems and intelligent software to achieve fully automated storage, retrieval and internal transport.Unlike conventional AS/RS, the four way shuttle system allows shuttles to move both longitudinally and laterally on the same level, enabling flexible routing, multi-deep storage and scalable system expansion.

System Structure

We adhere to the principle of “software defines hardware,” and our self-developed WMS and WCS deliver real-time synchronization with ERP systems, unified management of inventory, orders, labor, and material handling equipment, end-to-end optimization from storage to picking and shipping, visualized zone capacity, destination availability, and equipment status, as well as accurate physical-to-digital inventory consistency.

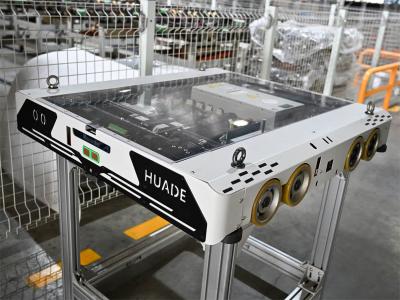

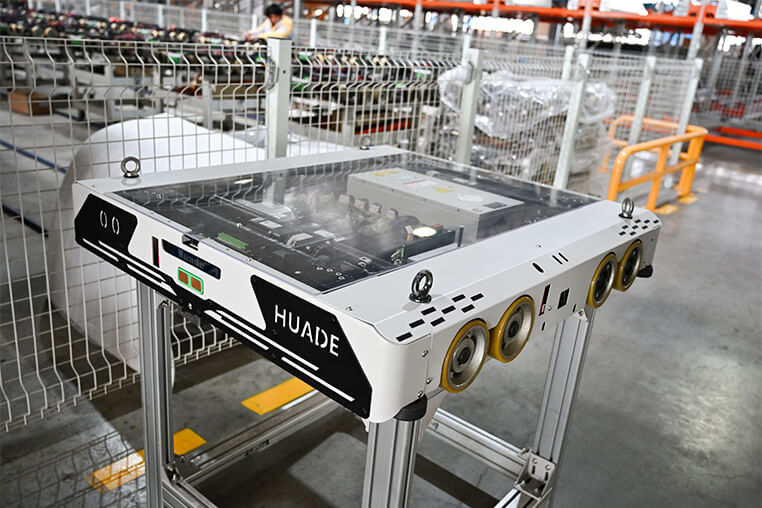

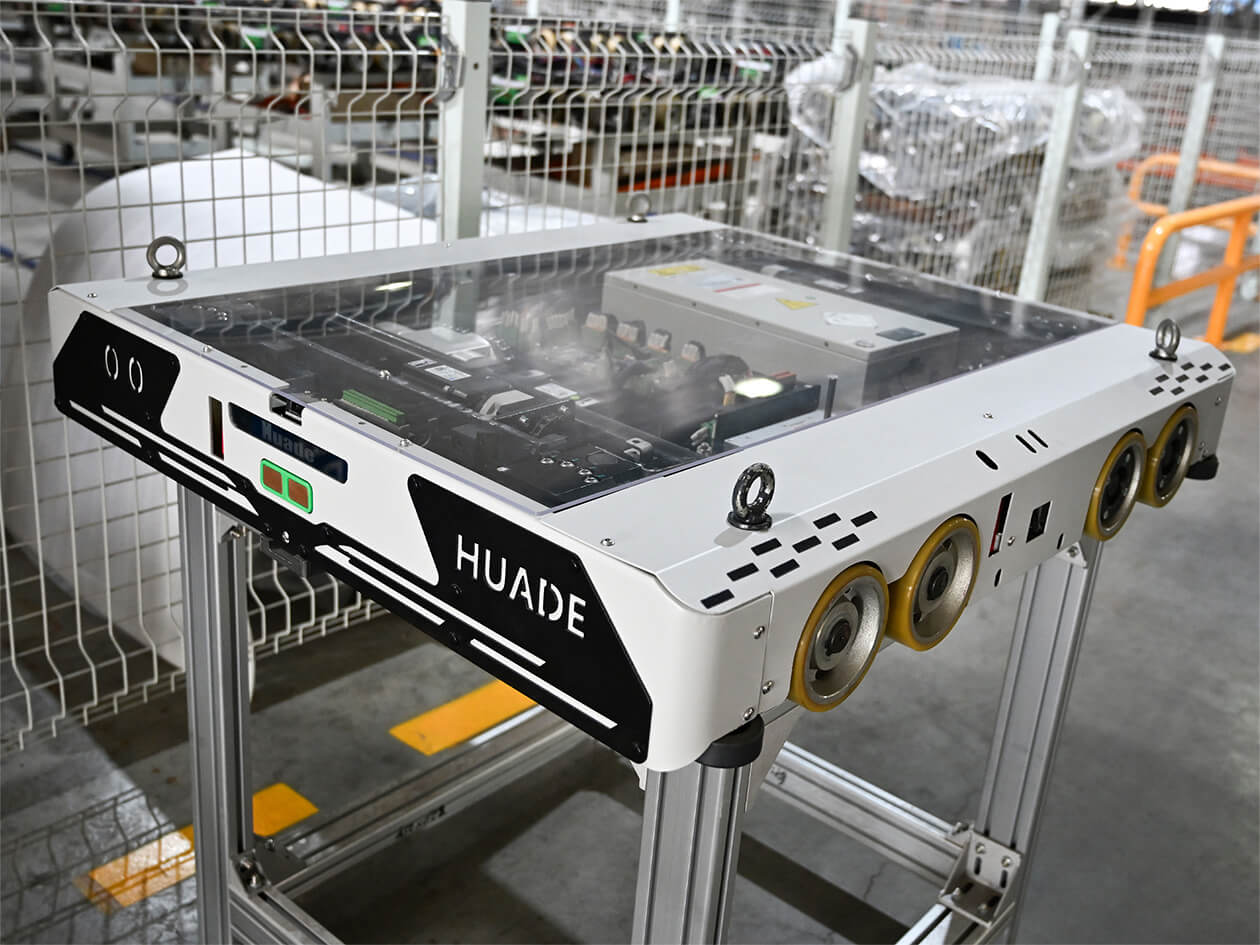

Four Way Pallet Shuttles
Perform horizontal and lateral movement within the racking system for pallet transport and storage

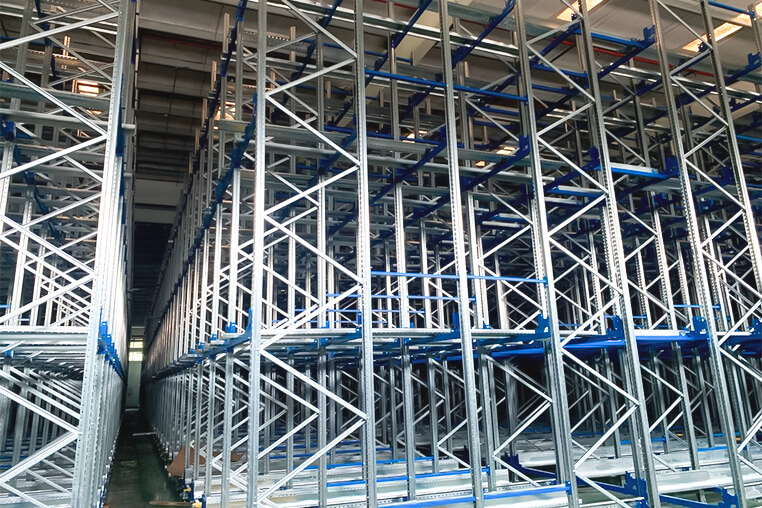

Shuttle Racking System
High-density multi-deep racks with integrated rail network.

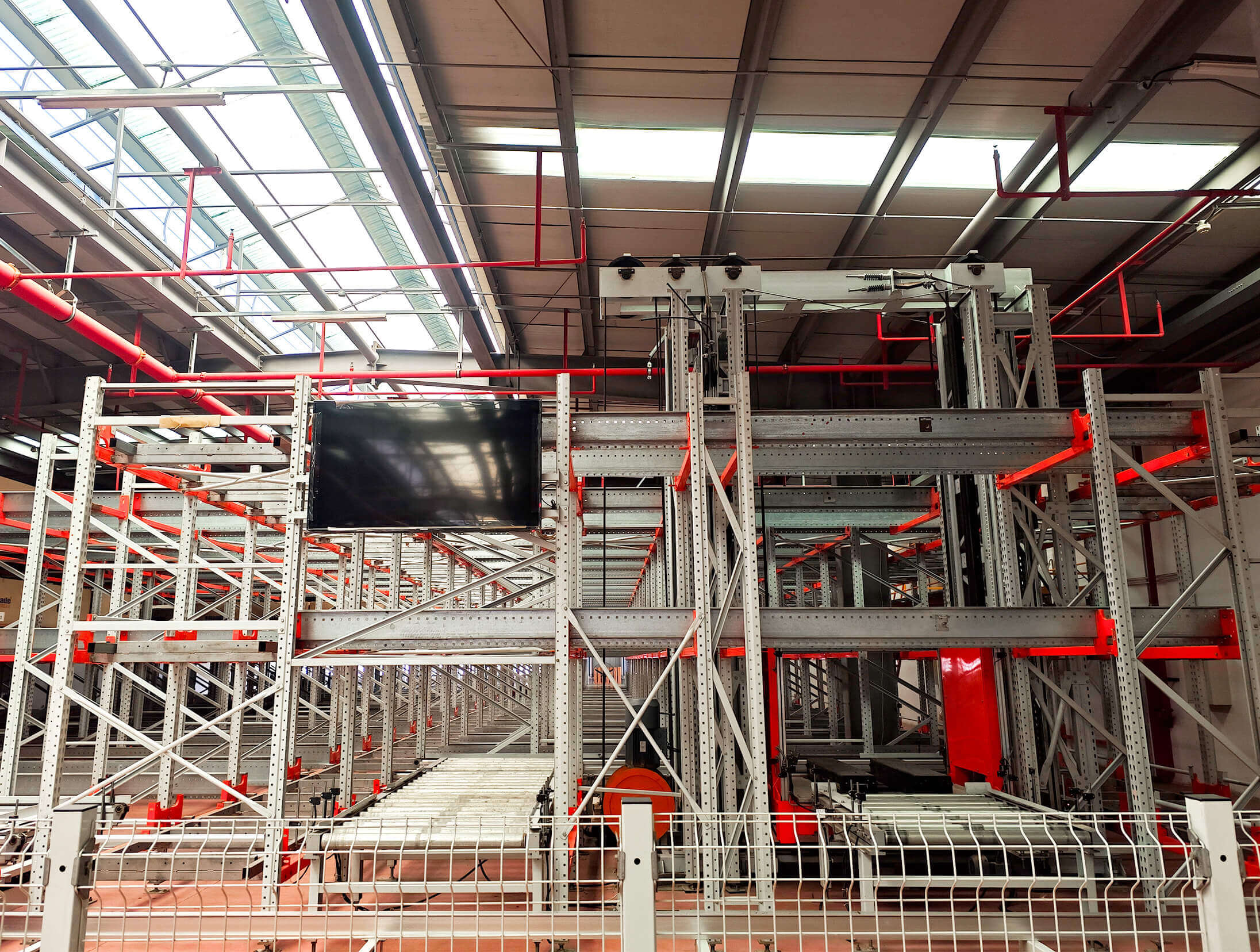

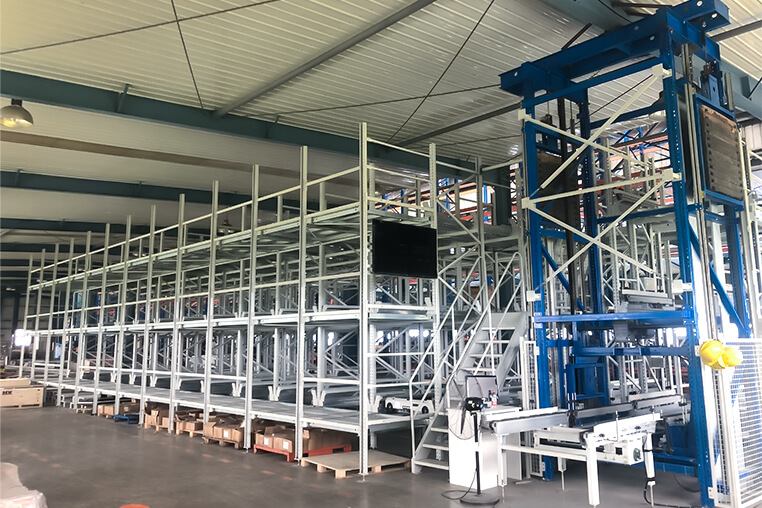

Vertical Lifts
Enable pallet transfer between different storage levels.

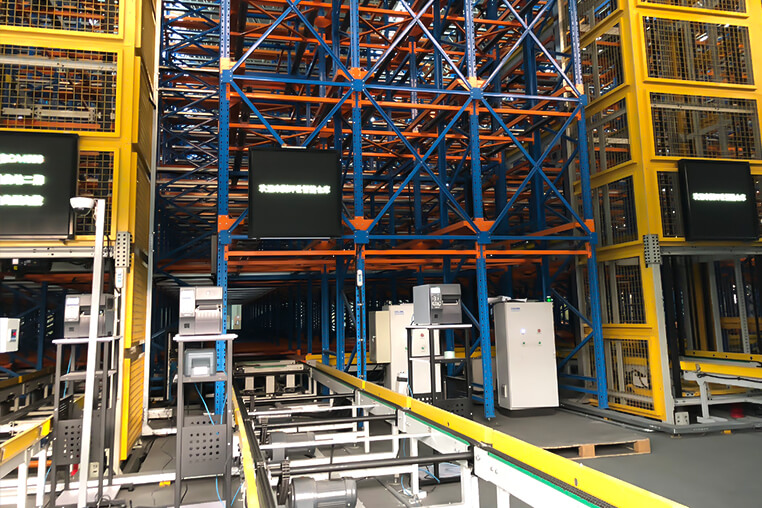

Conveyor and Transfer Stations
Interface between AS/RS and inbound/outbound processes.

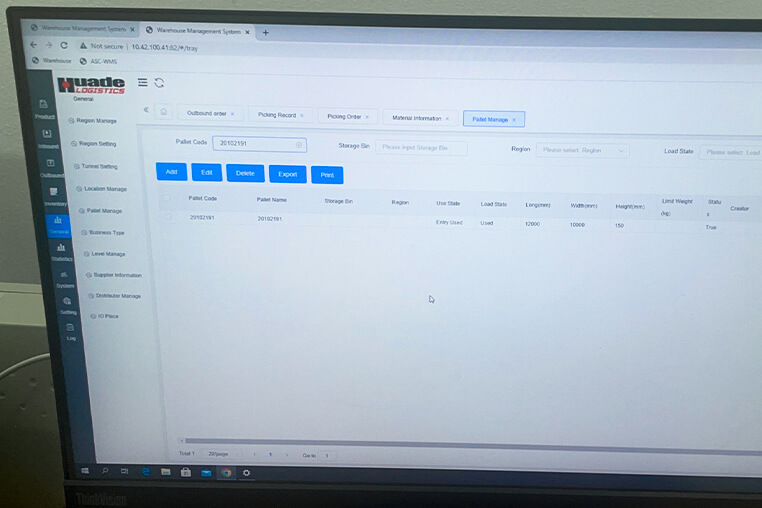

Control System (WMS & WCS)
Manages inventory, coordinates equipment and executes storage and retrieval tasks.

Functional Advantages

1. Ultra-High Storage Density

Adopts deep-lane compact storage and multi-level vertical layout.

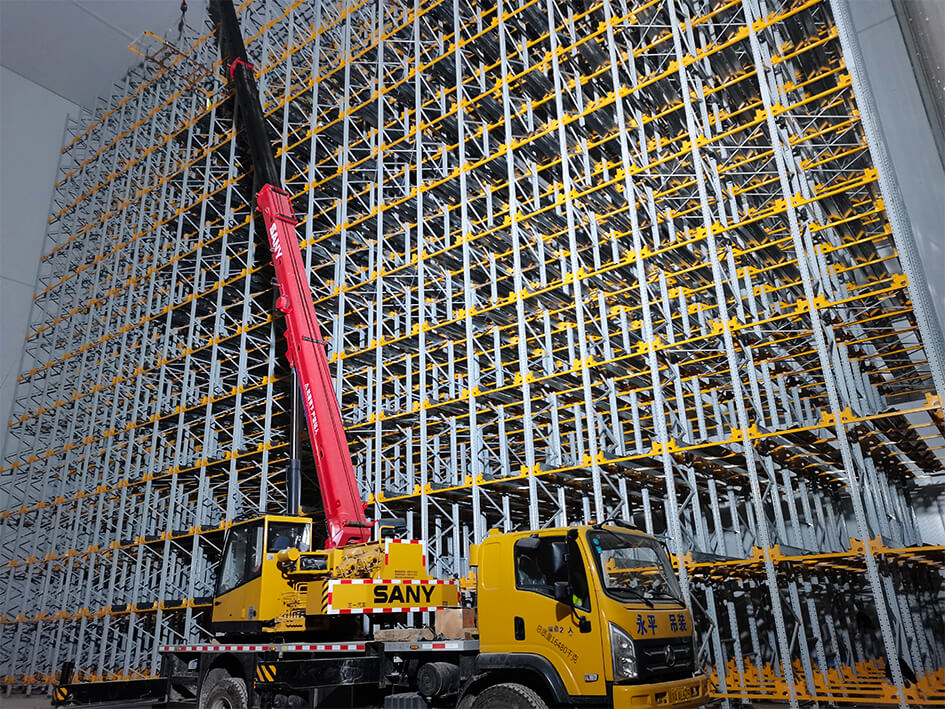

System height can exceed 24 meters, fully utilizing vertical warehouse space.
Narrow aisles and dense racking structure increase storage capacity by up to 300%+ compared with conventional floor storage.
Especially suitable for land-constrained industrial and logistics zones.

2. Modular & Scalable Design

Modular system architecture allows easy expansion by adding more shuttle robots or extending racking areas.
Supports phased investment and gradual system upgrade as business grows.

3. High Throughput Performance

Multiple shuttle robots operate simultaneously and in parallel.
Strong system throughput meets the demand for high-frequency inbound and outbound operations.

4. Intelligent Inventory Control

Advanced algorithms coordinate equipment and optimize storage logic.
Supports inventory strategies by batch, date, SKU, and pallet ID.
Fully compatible with deep-lane storage and ensures precise stock visibility.

5. High Reliability

Failure of a single shuttle does not affect the entire system operation.
Higher overall reliability than traditional AS/RS with centralized equipment, ensuring continuous warehouse operation.

6. Smart Operating Logic

Free movement in both longitudinal and transverse directions eliminates route limitations.
One shuttle can complete the entire storage and retrieval cycle independently.
Intelligent path planning selects the optimal travel route automatically.
Supports FIFO (First In, First Out) and FILO (First In, Last Out) strategies.

Technical Specifications

Model NO.	4 Way Pallet Shuttle	Type	Shuttle Robot
Pallet Size	1*1.2 or Customized	Warehouse Type	Existing Warehouse or New Build Warehouse
Type of Package	Carton, Plastics Wrapping or Non Package	Type of Storage Medium	Pallet, Metal Cage or Others
Shuttle Self Weight	280-290kg	Sub-Rail Height	170mm
Lifting Type	Mechanical	Driving Motor Power	1000W
Transport Package	Standard Export Package	Specification	Q235 STEEL
Trademark		Origin	China
HS Code	8428902000	Production Capacity	1200 Units/Year

How It Works

The core of the system is the four way shuttle robot, which can move freely in both directions along the racking rails:

1.Transport

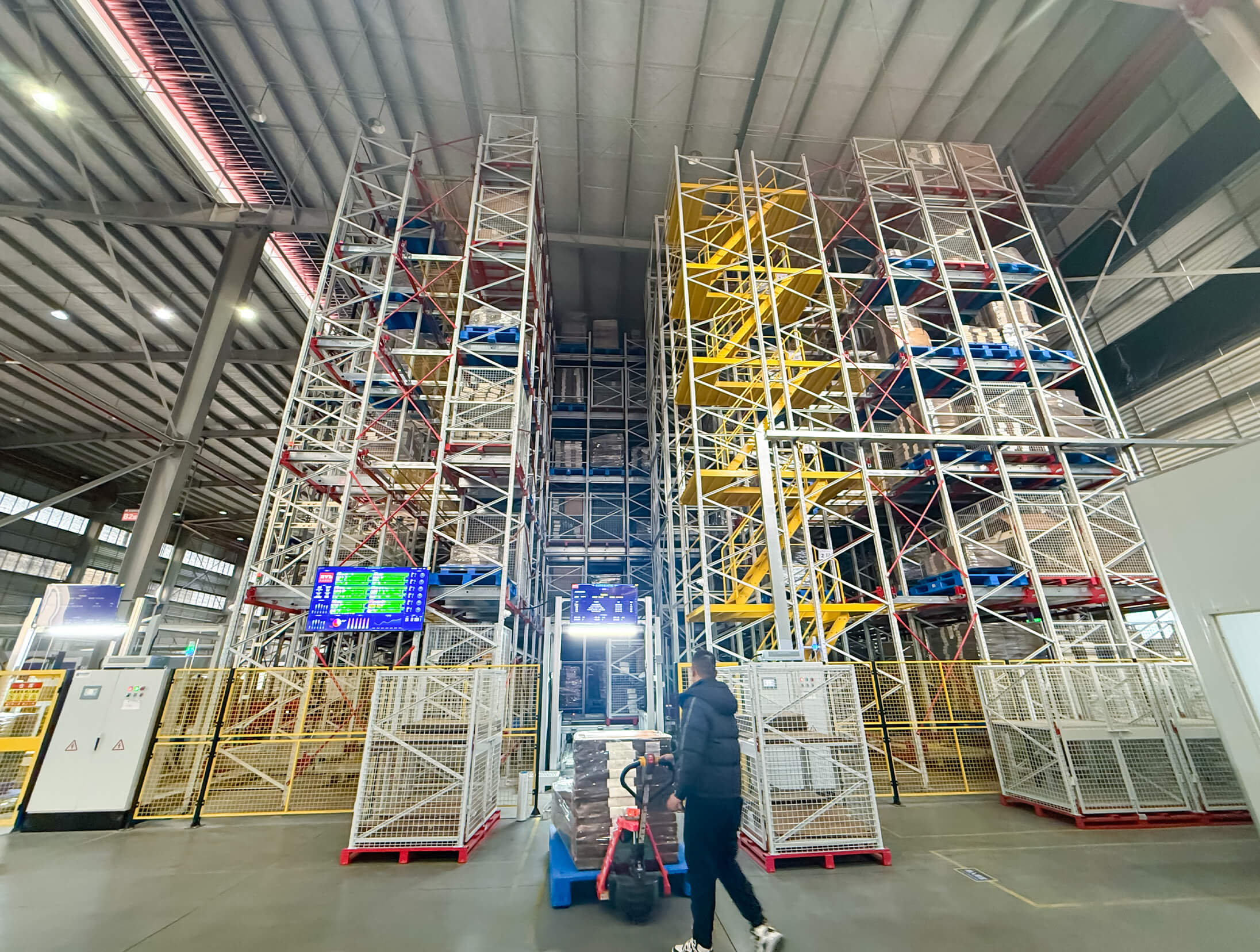

Pallets are delivered to the inbound station by forklift or conveyor.

2.Storage

The lift transfers pallets to the target storage level.

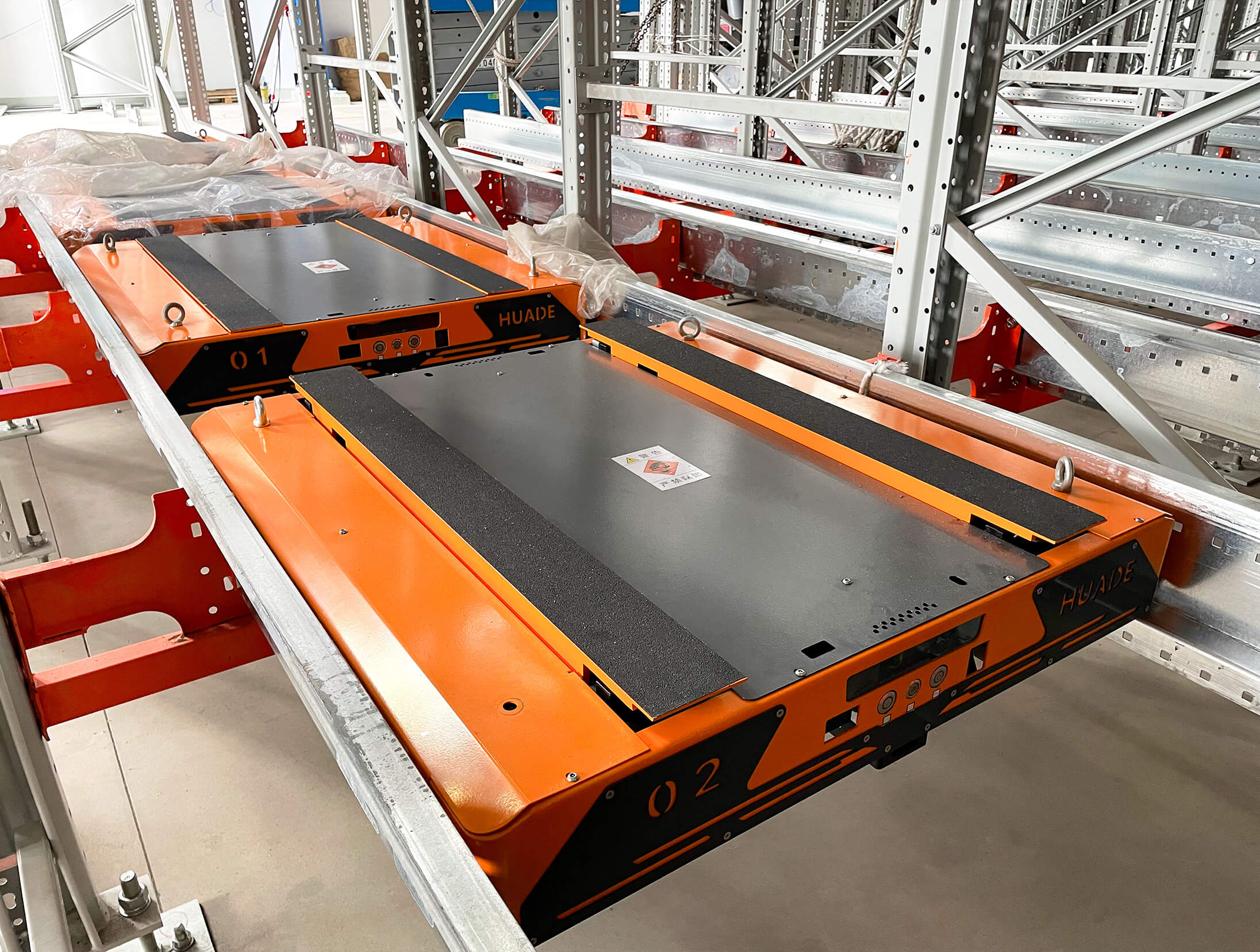

3.Level Transfer

The shuttle robot travels horizontally and vertically (via lift transfer) to store pallets in assigned locations.

4.Retrieval

For outbound operations, the shuttle retrieves pallets and delivers them to the lift, then to the outbound station.

Application Scenarios

The Four Way Shuttle ASRS is ideal for:

Manufacturing Industry – raw materials and finished goods storage
Bulk Logistics Centers – centralized pallet storage and distribution
Cold Chain Warehouses – high-density pallet storage in cold rooms
Third-Party Logistics (3PL) – multi-client, multi-SKU warehouse operations

Why Choose Us

R&D Strength

Since 2016, we have focused on the R&D of four way pallet shuttle systems to develop flexible and scalable automated pallet storage solutions. Through continuous upgrades, our shuttle robots have become faster, lighter, and more accurate, forming a stable and proven technology for high-density pallet automation.

Testing & Development Platforms

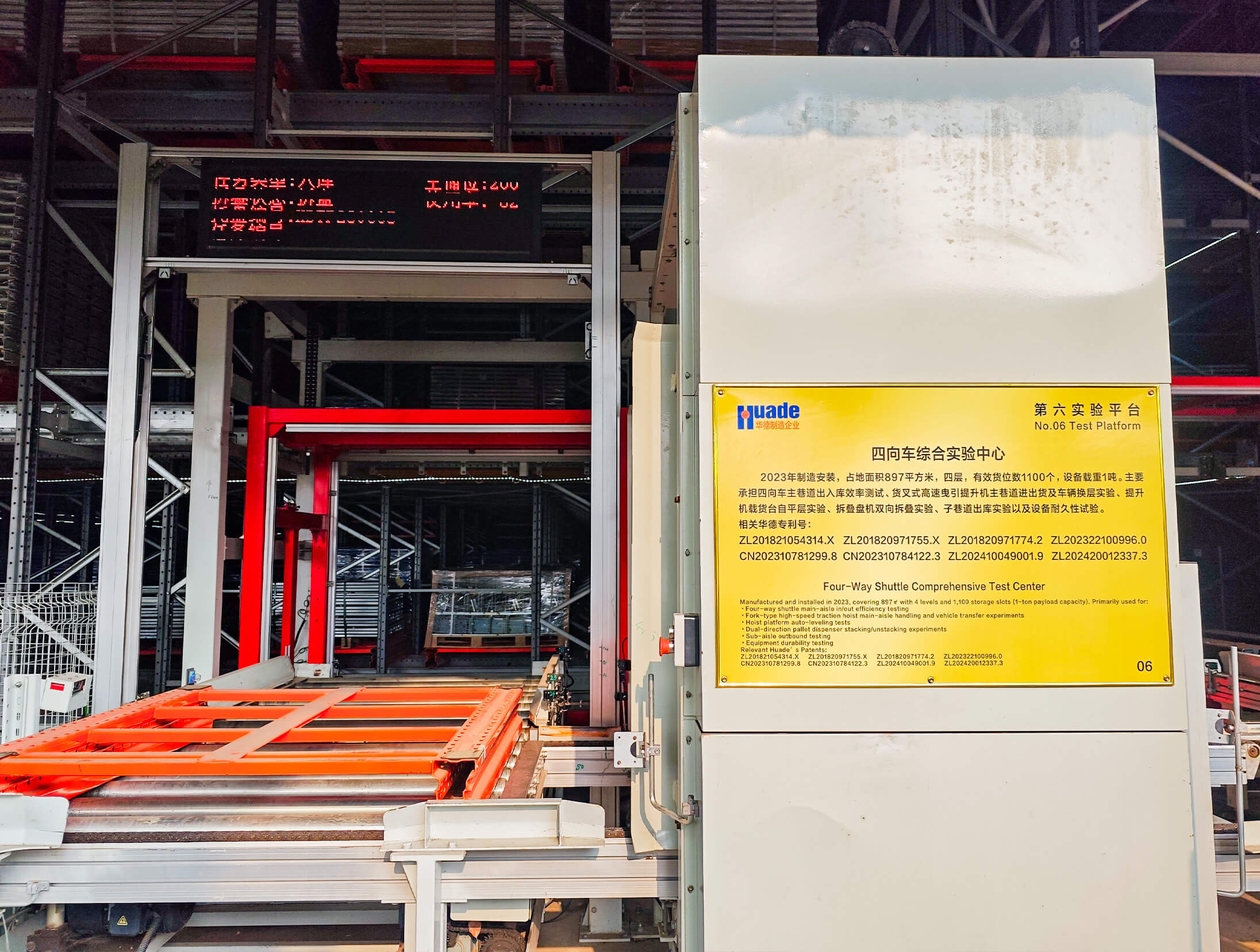

To support innovation, we built a Four Way Shuttle Scheduling Test Center in 2021 and a comprehensive test platform in 2023. These facilities are used for multi-shuttle dispatching, software validation, efficiency testing, and durability trials, ensuring that every Four Way Shuttle ASRS is reliable and ready for industrial operation.

Frequently Asked Questions

Is the Four Way Shuttle system suitable for existing warehouses?	Yes. It can be applied to both new-build warehouses and retrofit projects.The modular structure allows flexible layout design according to existing building height, column spacing, and floor conditions.
Can the system be used in existing warehouses?	Yes. The Four Way Shuttle ASRS can be implemented in both new-build and existing warehouses. Its modular design allows it to adapt to different building heights, column spacing, and floor conditions, making it suitable for retrofit projects.
How does the system support FIFO or FILO?	FIFO and FILO strategies are managed by the WMS, which assigns storage locations and retrieval sequences based on product attributes such as batch number and production date, ensuring flexible and accurate inventory flow control.
How is high throughput achieved?	High throughput is achieved through parallel operation of multiple shuttle robots, fast vertical transfer by lifts, and intelligent task scheduling by the WCS, enabling efficient handling of large volumes of pallet movements.
Can the system be expanded later?	Yes. The system is modular and scalable, so future expansion can be achieved by adding shuttle robots, extending racking blocks, or upgrading software functions without major structural changes.
Is the system suitable for cold storage warehouses?	Yes. The Four Way Shuttle ASRS is well suited for cold and frozen storage environments because it minimizes manual labor inside cold rooms while maintaining stable automated operation with components designed for low-temperature conditions.
